SPARK IGNITORS
AIR HEAT BURNERS

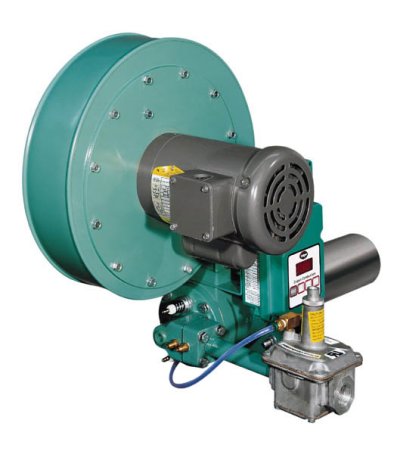

RatioMatic 1.0
 -- 150000-5 - Rod, Spark, Assy., 21.9 in..
    (750-1250)





RatioMatic 3.0
--100049-1 -  Spark rod for 240mm , 254mm
 combustor tube (RM050 - 100)

-- 100049-2 - Spark rod for 315mm,330mm
 combustor tube (RM050- 200)

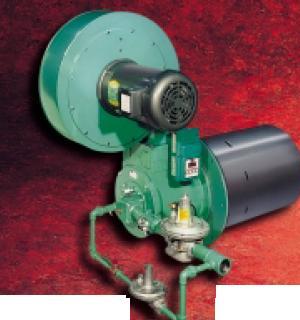

WIINNOX




-- 100049-9 - Sparkrod, Non-Selfgrounding,
0.5 in. NPT, 373 mm Long(200)


-- 100205-12 - Sparkrod,Self-Grounding,
  0.5 in.NPT,552mm Long(1000)

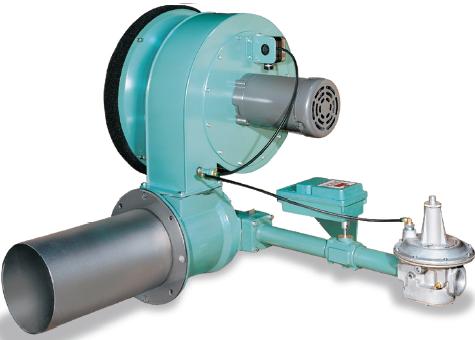

THERMAIR1.3/ RATIOAIR 1.0


-- 23045 - Plug,Spark,14mm,4.125 in. Long, Sealed
  For High Pressure Systems. Ref: 10012
  (TA015 - RA0300)


-- 12045 - Shutter, Injector, Primary Air,
  1/2 in. Pilot Injector
  (TA025 - TA040)

-- 10002322 - Spark Plug, 14mm, 2.50 in.
 Long, Sealed For High Pressure
 (TA075- TA100)





AIR HEAT Version 1.0

-- 13047 - Plug, Spark, 14 mm,
  43mm Lg., Self Grounding





AIR HEAT Version 2.0

--13047-1 - Plug, Spark, 14 mm,
     55 mm Lg, Self Grounding

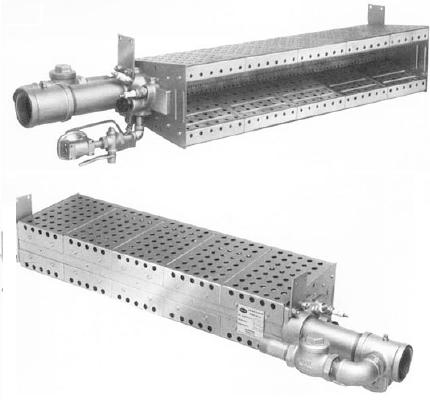

AIR HEAT  BURNERS (AH-MA)


-- 17071 - Plug, Spark, 14mm Thread,
  1.375 in. Long, Self Grounding, I-31.


-- 16946-1 - Plug, Spark, 1/2 Pipe,
   5 in. Lg., 1/8 Electrode


--A13093-6 TAH - Spark Ignitor; FRS 4-6
  1/4" thd. X 6" long with 3/16" dia.rod


OBSOLETE BURNERS

-- 150000-28 - Rod, Spark, Assy., 11.1 in..
     (40MMB - 50MMB)

FURNACE BURNERS

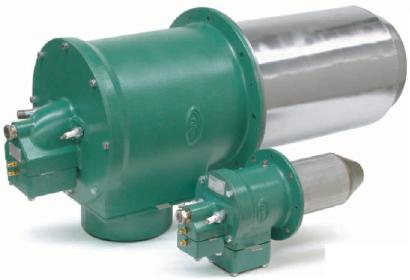

THERMJET 2.2


-- 23045 - Plug,Spark,14mm,4.125 in. Long, Sealed For
      High Pressure Systems. Ref: 10012
TJ015 - TJ040 Parts


-- 10002322 - Spark Plug, 14mm, 2.50 in. Long,
    Sealed For High Pressure
    (TJ050 - TJ200 )


HVTA - MVTA BURNERS/ MVTA-PCA BURNERS

-- 16927 - Spark Plug, 14 mm., 1.87 in. Length


-- 16946-5 - Spark Plug, 1/2 in. Pipe, 3/4 in.
  Lg., 1/8 in. Electrode


-- 18193-1 - Plug, Spark, 1/2 Pipe, 1 in. Lg., Adj.
 Position, 1/8 Electrode



EXTENSO-JET BURNERS

-- 150000-27 - Rod, Spark, Assy., 14.9 in..
     Burner Length 18 - 36
TUBE FIRING BURNERS

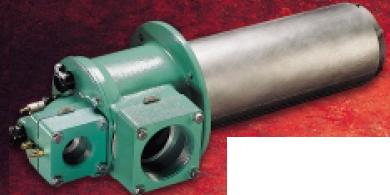

THERMTHEIF V2.00

-- 100640-3 - Spark Electrode Assembly, 63 TFB.


Metallic Auto-Recupe

-- 150000-11 - Rod, Spark, Assy., 27.9 in..
     (1314 AR- 3-1/4" Diameter.
     14 - 19"" Burner Length)

ImersoJet Burners

-- 11941 - Spark Electrode And Flame Rod (Adjustable)
For 8 in. Ij Burner, Auburn
Pn-0271203 Model Ip-16-Ei.

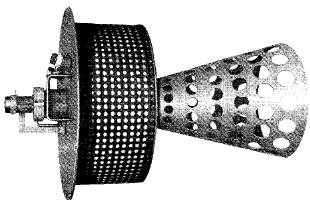

INCINI-CONE BURNERS


Infra- Red Generators

--100216-1 - Plug Assembly, Ignition, 136 - 680 IC Burners
(For Sizes Burner, IC, 136 Incinicone)


--100224-1 - Plug, Assy., IC., 900 & 1480 Ignition





Home
Back to Accessories
$141.27
$136.91



$136.91
$135.97




$141.27





$77.19
$30.90



$46.07


$41.49







$141.27
$74.84


$74.84
$69.83



$136.02
$38.24




$21.37



$37.88
$29.37
$29.37

$38.24




$37.88.
$31.45



$46.07





$44.65





$141.27
